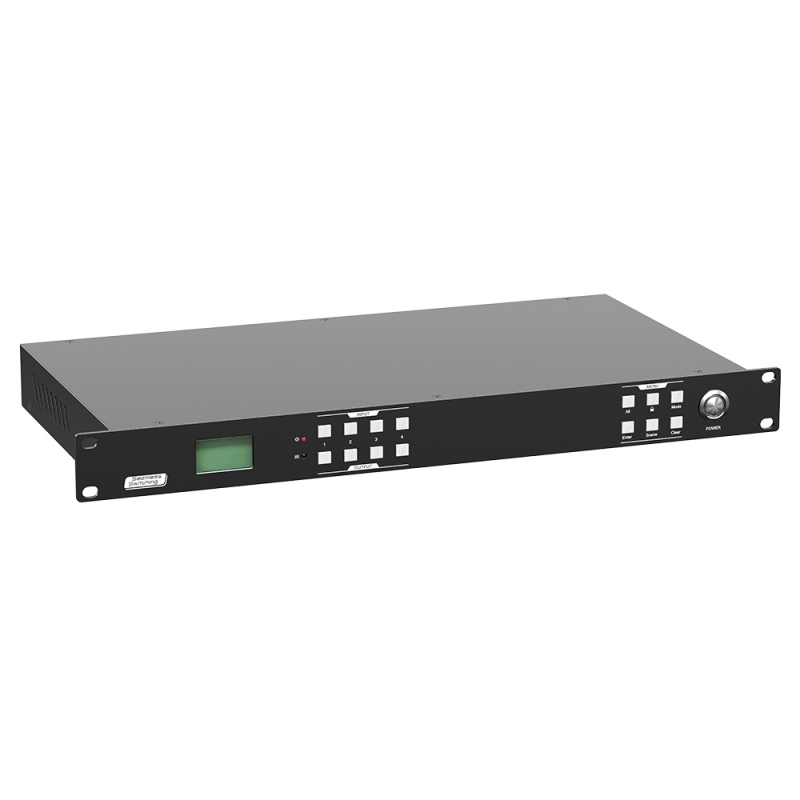

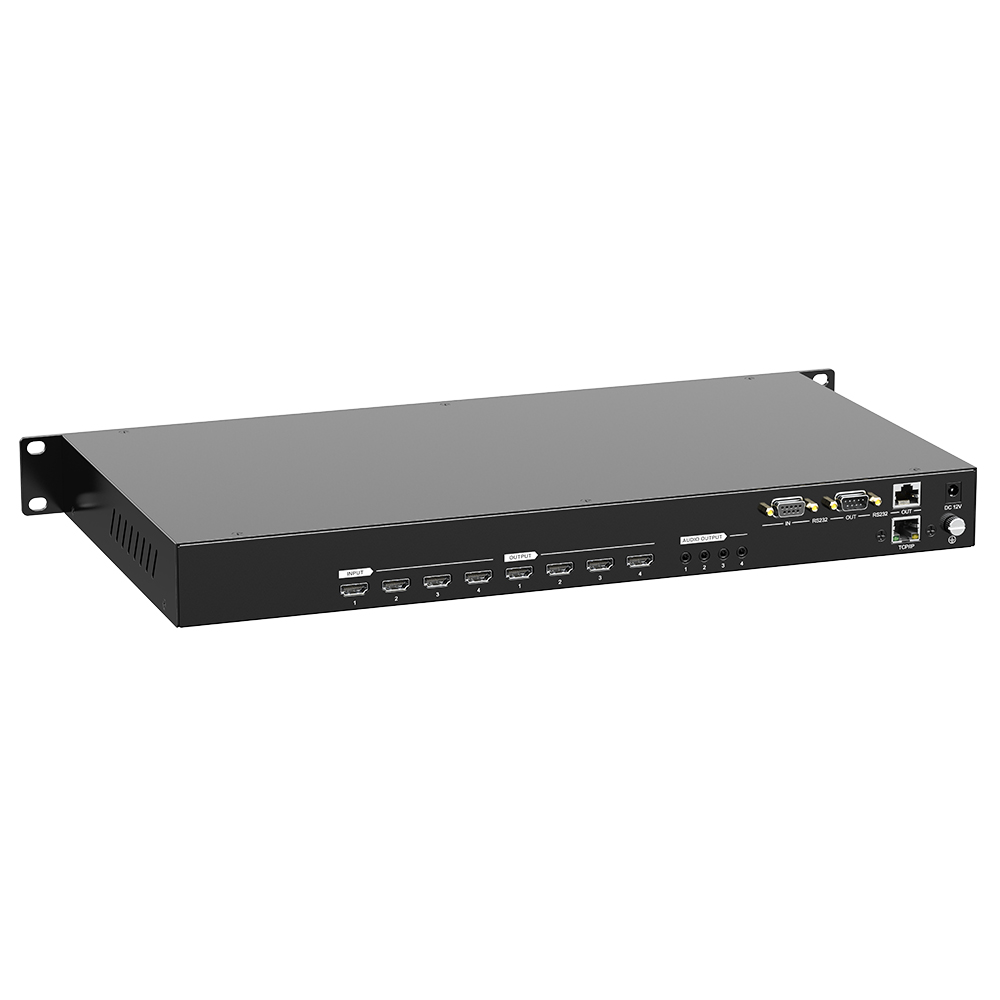

The HDMI4*4-WD is a professional 4x4 HDMI 18Gbps Seamless Matrix Switcher with EDID management. It includes 4 HDMI inputs, 4 HDMI outputs, which is designed for switching two HDMI 18G and HDCP2.2 compliant signals. It also features 4 analog audio outputs for audio matrix. The matrix switcher features comprehensive EDID management to ensure maximum functionality with a wide range of video sources. The matrix switcher not only supports bi-directional RS232 extension but also has IR, RS232, and TCP/IP control options.
Features：
4x4 HDMI 18G True Seamless Matrix Switcher;
Supports 4K/60 4:4:4, HDR, HDCP2.2 compliant;
Audio Matrix, audio out can de-embedded from arbitrary input or output;
Built-in 8 different EDID for inputs, supports user defined;
Input is compatible with DVI / HDMI signal;
Provides 15 resolutions selectable;
Controllable by front panel, IR, RS232 and TCP/IP.
MMX6464-WD is a high−performance matrix switcher chassis for various digital and analog signals with TCP/IP control. The modular design is popular with 16 input slots & 16 output slots.
MMX1616WD is a high−performance matrix switcher chassis for various digital and analog signals with TCP/IP control. The modular design is popular with 4 input slots & 4 output slots.
MMX3232--WD is a high−performance matrix switcher chassis for various digital and analog signals with TCP/IP control. The modular design is popular with 8 input slots & 8 output slots.
The HDMI8*8-WD is a professional 8x8 HDMI 18Gbps Seamless Matrix Switcher with EDID management. It includes 8 HDMI inputs, 8 HDMI outputs, which is designed for switching two HDMI 18G and HDCP2.2 compliant signals. It also features 8 analog audio outputs for audio matrix. The matrix switcher features comprehensive EDID management to ensure maximum functionality with a wide range of video sources. The matrix switcher not only supports bi-directional RS232 extension but also has IR, RS232, and TCP/IP control options.
