Hardware ：

1. An IoT control system with 4 GB SDRAM and 32GB flash memory

2. Embedded 4-core CPU processor with a maximum clock speed of 2.0GHz per core

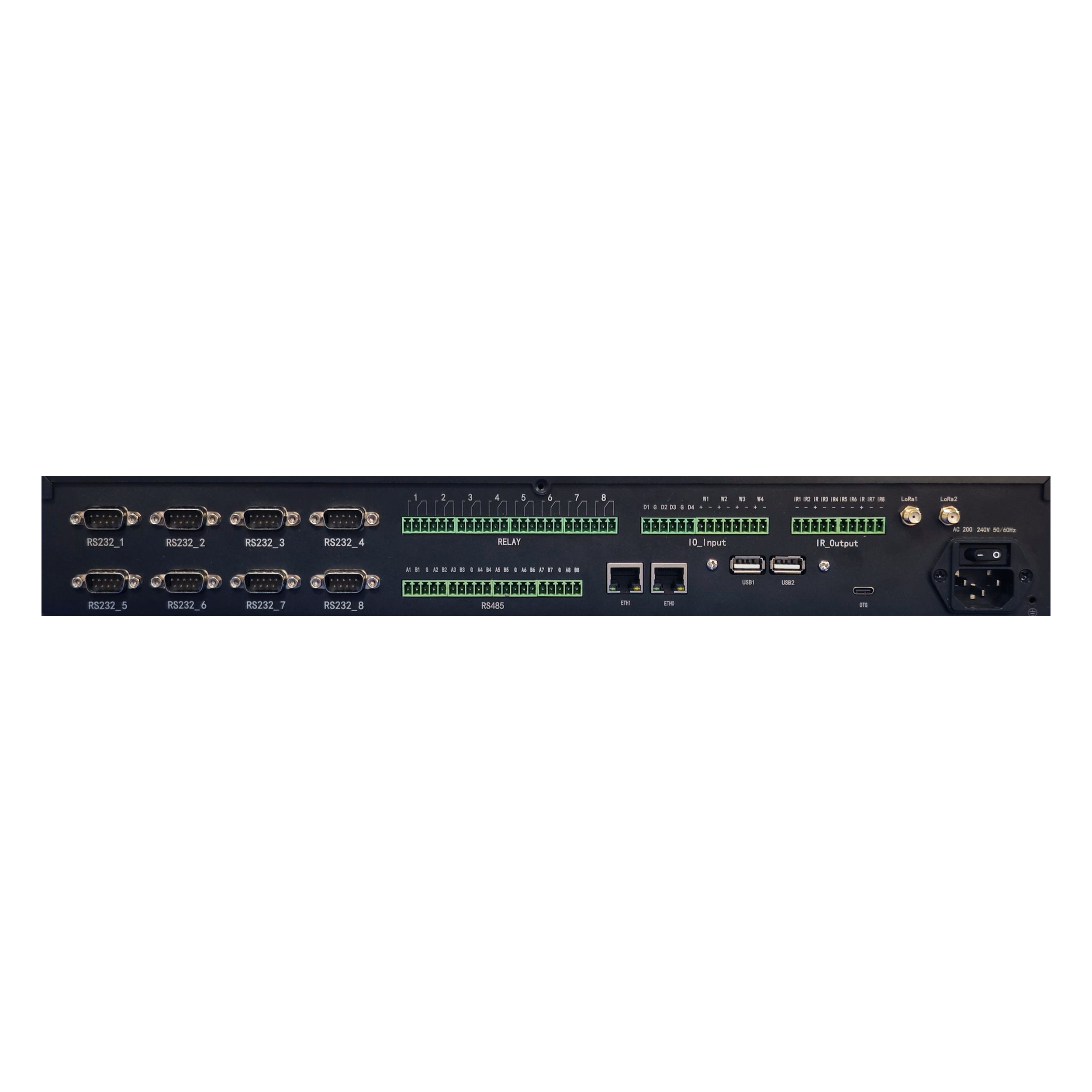

3. Network ports: 2 x 1000M Ethernet ports

4. 16 serial ports, including 8 RS232 interfaces and 8 RS485 interfaces

5. Eight IO ports, including four dry node GPIOs and four wet node GPIOs

6 or 8 RELAYOUTPUT output ports

7. 1 high-speed USB2.0 port and 1 high-speed USB3.0 port

8. Features 8 IR (infrared) transmitter ports and 1 receiver port, with brand-specific protocol support for 90% of appliances. Includes remote button mapping learning functionality.

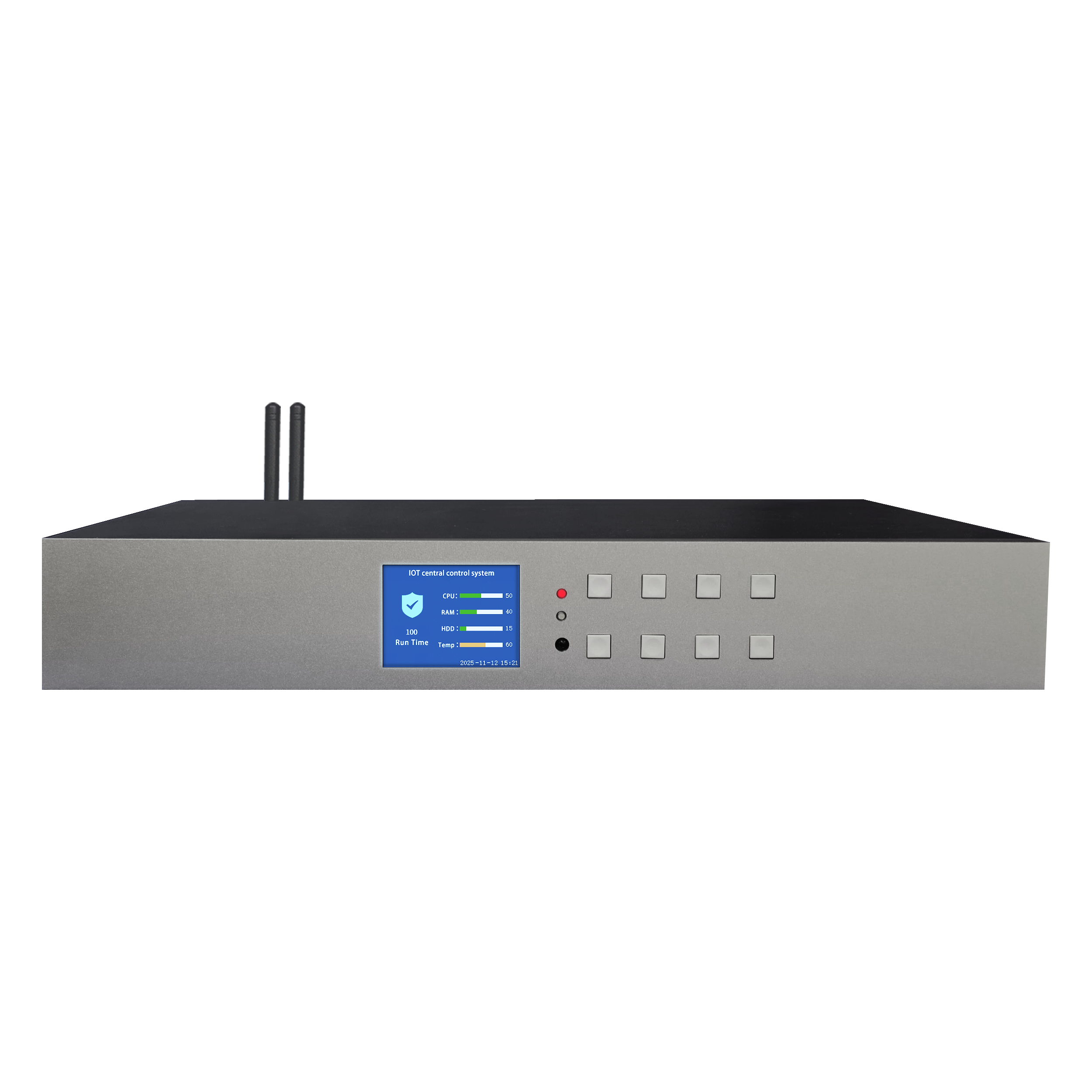

9. Eight front panel function keys, including up/down page-turning buttons, plus six customizable keys for one-touch scene activation.

10. A 2.8-inch color display shows device name, IP address, operational status, CPU, memory and storage usage, working temperature, current time, and panel button operation results.

11. Two wireless LoRa channels for connecting LoRa wireless terminal devices

12. Device dimensions: 1.5U rack-mount installation.

13. Power supply: VAC, 220V/50Hz.

Software ：

1. Supports web-based page debugging, device management, and control.

2. Supports iPhone®, iPad®, and Android™ device control applications

3. Enterprise-level network security configuration

4. On the host web page, you can easily configure one-click scenarios, scheduled policies, linked policies, inspection policies, and alarm policies through simple check-and-drag editing. Advanced features required on-site can also be easily implemented.

5. Supports space grouping, enabling flexible switching between separate control and unified control of multimedia devices across multiple meeting rooms.

6. The system can collect environmental parameters including temperature, humidity, CO2, PM2.5, and PM10 via LoRa wireless protocol.

7. Control various devices locally or remotely via tablet or mobile app.

8. Device operation logs, including system operation logs, device operation logs, and alarm logs.

9. Supports remote debugging for web pages

10. The "Yilian Control" APP features a four-in-one scenario mode: it automatically generates three UI interfaces for "Meeting Control", "Exhibition Hall Control", and "Smart Office". The "Custom Mode" allows users to tailor the interface, meeting personalized needs and brand consistency requirements while enabling seamless switching between the four scenarios.

Application scenarios: IoT data collection and control for devices in government and enterprise meeting rooms, exhibition halls, office buildings, smart homes, smart campuses, and other environments.
